Keyframe interpolation and graph editor in After Effects

In After Effects, the correct handling of Keyframes opens up endless possibilities for animation. In this context, the Keyframe-Interpolation plays a crucial role in shaping the dynamics and flow of your animations. If you already have a basic understanding of keyframes, it is time to dive deeper into the matter and use the Graph-Editor. This guide will walk you step by step through the use of Keyframe interpolation in After Effects, so you can significantly improve your animation results.

Key Insights

• The Graph-Editor helps visualize and adjust the motion between keyframes.
• By setting Bezier curves, you can influence the smoothness and acceleration of your animations.
• Effective use of the Graph-Editor enables complex animations with fine adjustments.

Step-by-Step Guide

First, open After Effects and import your desired resource, such as an image or a video, into the project. Selecting an appropriate layer is crucial for the further process.

After importing your image, create a camera to utilize the 3D functionalities of After Effects. Right-click in the timeline and select “New” and then “Camera.” This activates the 3D options for your layer.

Once the camera is created, you can experiment with the position. Click on the “Position” attribute of the camera layer and set a keyframe at 0 seconds. Move the time marker to 2 seconds and change the X and Y positions to create movement.

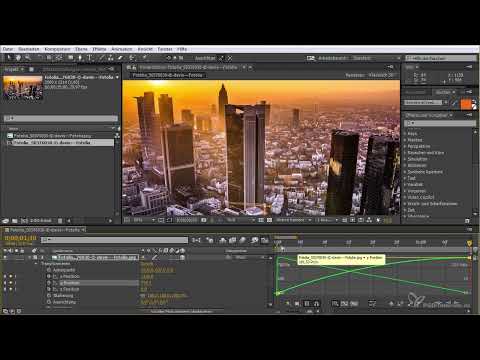

Now, switch to the Graph-Editor to visualize the interpolation between the keyframes. The Graph-Editor shows you the speed of your animations, represented by a curve. You should see a gentle slope that accelerates your movement.

An important aspect of animation is the smoothness of the transitions. Click on the keyframe and press the F9 key to activate Easy Ease. This will round your motion curve and create smoother movement.

If you want to change the interpolation type, you can do so by right-clicking on the keyframe. Here you have the option to choose between various interpolation options like “Linear” and “Auto Bezier.”

To further optimize your animation, you can keep multiple keyframes selected and adjust the curves by dragging. This allows you to make the effect more flexible by adjusting the timing between keyframes, for instance.

Another designed area is “Snapping,” which automatically adjusts all graphs so you have a better overview. This is particularly useful for keeping track of multiple keyframes.

Experiment with the various available tools. You can use the Graph-Editor to control the height of the curves based on animation effect and to adjust the values precisely.

It's also important to understand the animation curve. For example, you can work with S-curves to visualize smooth transitions. You can achieve this by simply moving points in the curve.

For even more precise control, you can also pull the individual points in the graph closer together or further apart. This allows for detailed fine-tuning of your animations.

Lastly, you can select all keyframes and change or delete them at any time using the “Ease In and Ease Out” actions. This way, you maintain full control over your values at every stage of the animation.

Summary – Keyframe Interpolation in After Effects: A Step-by-Step Guide

This guide has shown that the use of the Graph-Editor and the correct handling of keyframes are crucial for creating dynamic and engaging animations in After Effects. With the techniques presented, you can adjust movements and bring your animations to life.
